10 To 150 HP High-Volumetric Efficiency
Rotary Screw Air Compressor
High-efficiency, belt-driven or direct-drive rotary screw systems engineered for heavy-duty 24x7 industrial operations. Features advanced microprocessor controllers and an integrated cooling structure to deliver optimal CFM output with maximum energy savings.
Quick Specifications Overview
Power Range
10 HP to 150 HP
Working Stage
Single-Stage / 24x7 Operation
Lubrication Style
Oil-Injected / Advanced Separation
Applications
Heavy Manufacturing & Continuous Load
Technical Specifications
| Model | Power (KW) | RPM (min) | Free Air Delivery | Noise (db) | Machine Dimension (L X W X H) mm | Weight (Kg) | Air Outlet inch/mm | |||
|---|---|---|---|---|---|---|---|---|---|---|
| CFM | (m3/min)/Mpa | |||||||||
| JSK 10D | 7.50 | 2900 | 45.92 33.55 |
40.00 30.37 |
1.30/0.7 0.95/1.0 |
1.13/08 0.86/1.3 |
62±2 | 900X650X920 | 215 | G1 3/4" |

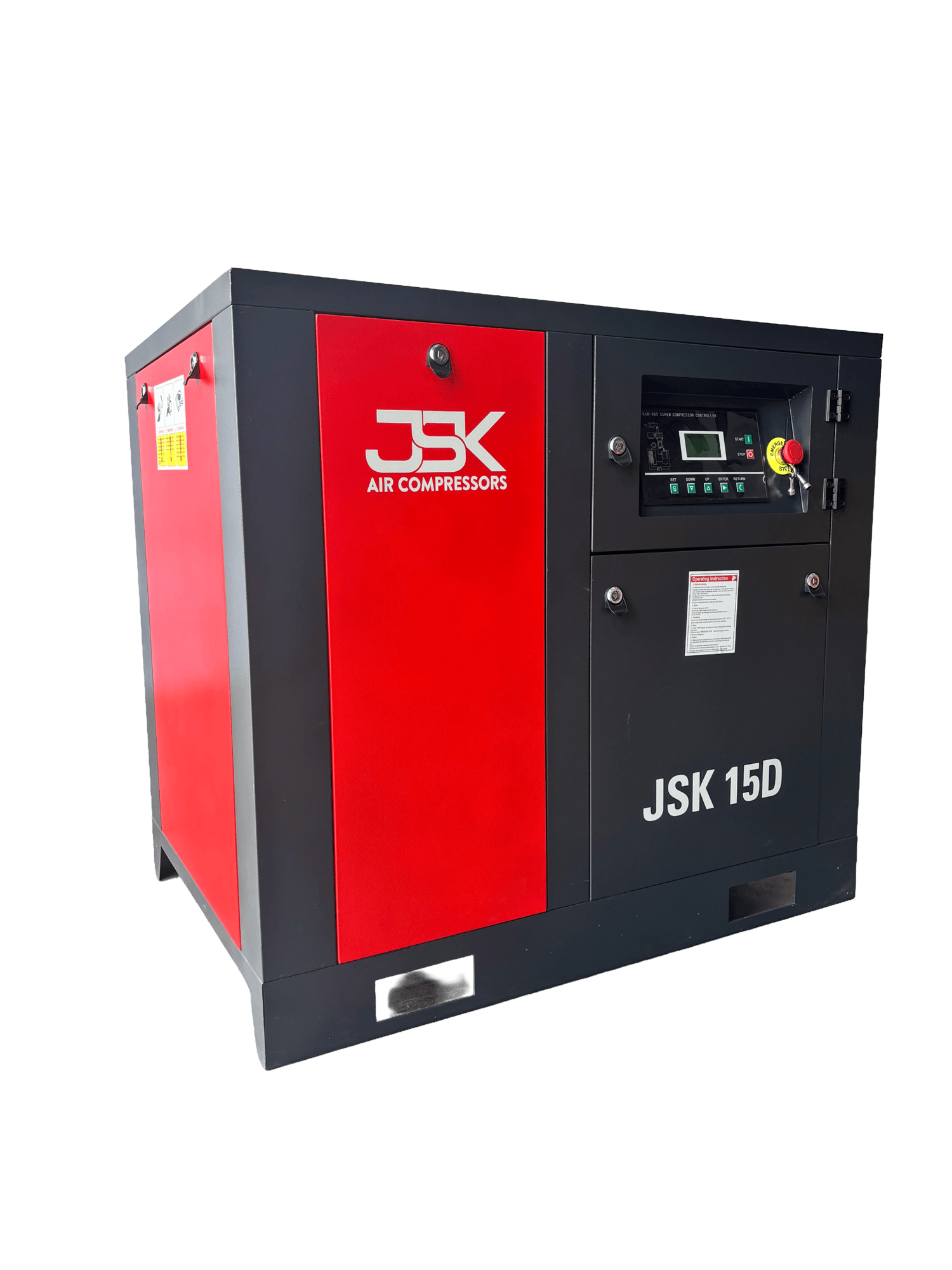

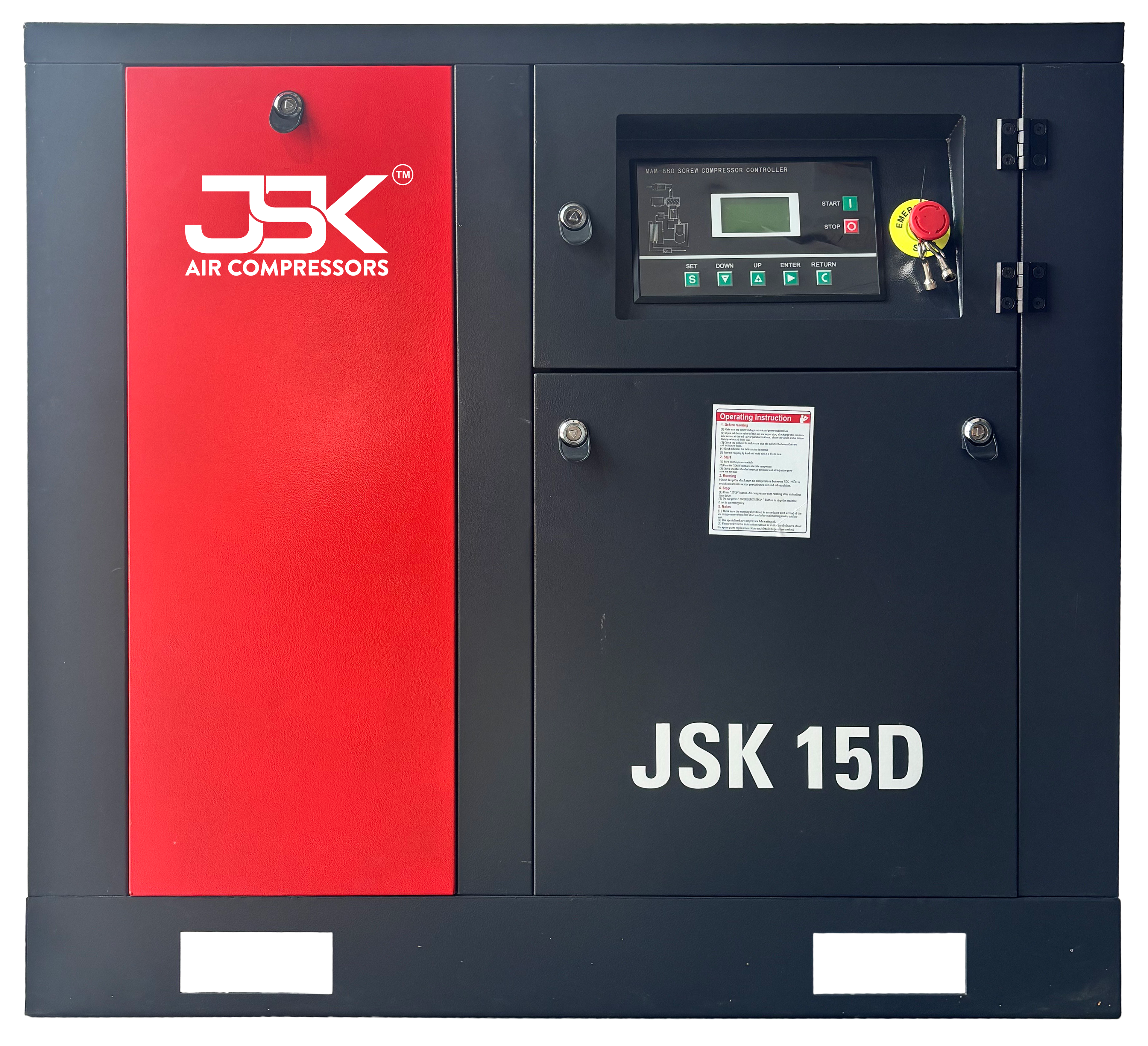

| JSK 15D | 11 | 2900 | 65.34 49.44 |
58.00 46.26 |
1.85/07 1.40/1.0 |
1.64/0.8 1.31/1.3 |
62±2 | 1080X700X1090 | 335 | G1 1" |

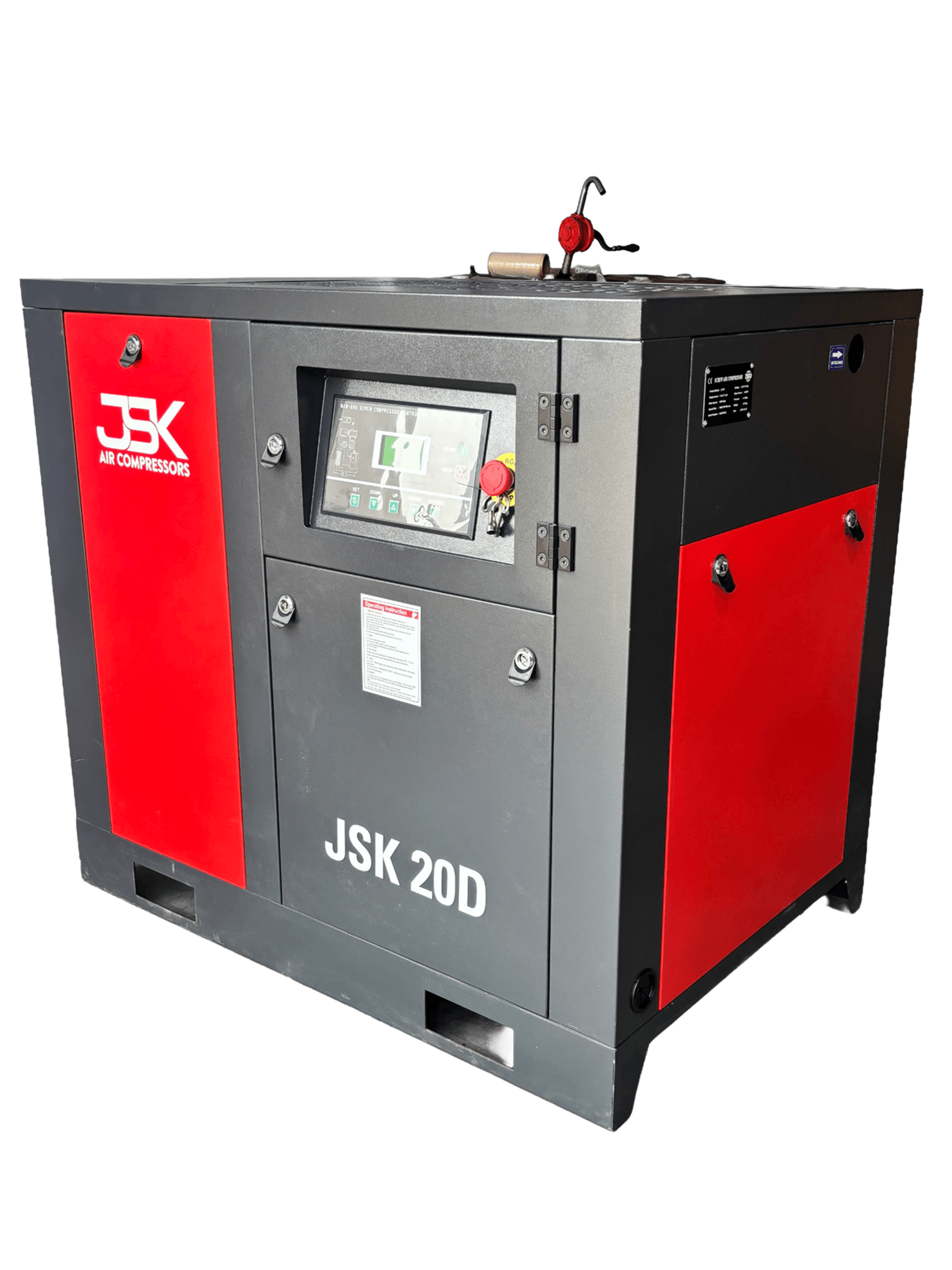

| JSK 20D | 15 | 2900 | 91.83 77.70 |
90.00 56.86 |
2.60/0.7 2.20/1.0 |
2.54/0.8 1.61/1.3 |
62±2 | 1080X700X1090 | 335 | G1 1" |
| JSK 25D | 18.50 | 2900 | 113.02 92.53 |
109.49 74.17 |
3.20/0.7 2.62/1.0 |
3.10/0.8 2.10/1.3 |
63±2 | 1300X855X1150 | 465 | G1 1" |

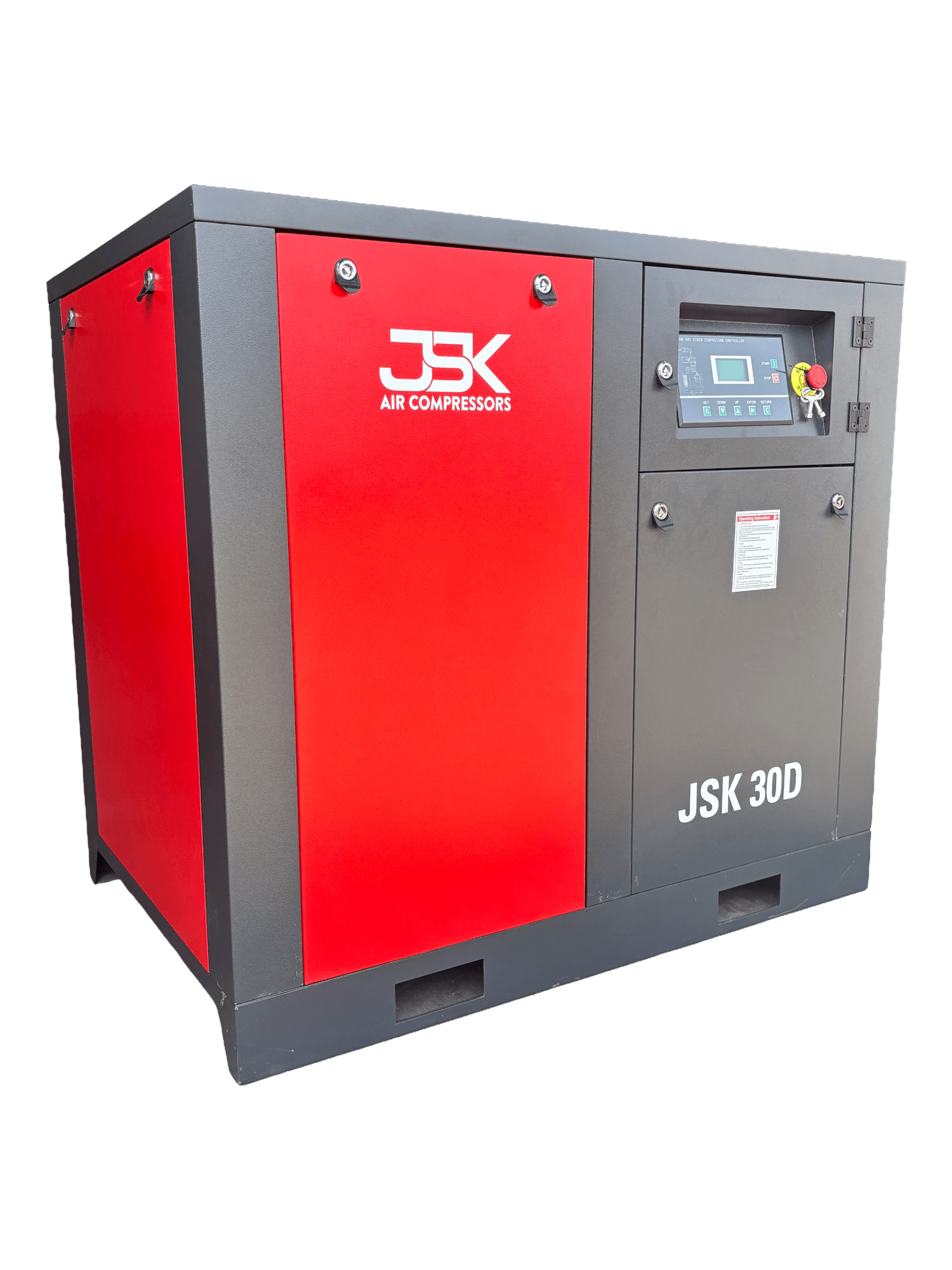

| JSK 30D | 22 | 2900 | 134.21 113.02 |
130.00 98.90 |
3.80/0.7 3.20/1.0 |
3.68/0.8 2.80/1.3 |
63±2 | 1320X880X1070 | 468 | G1 1" |

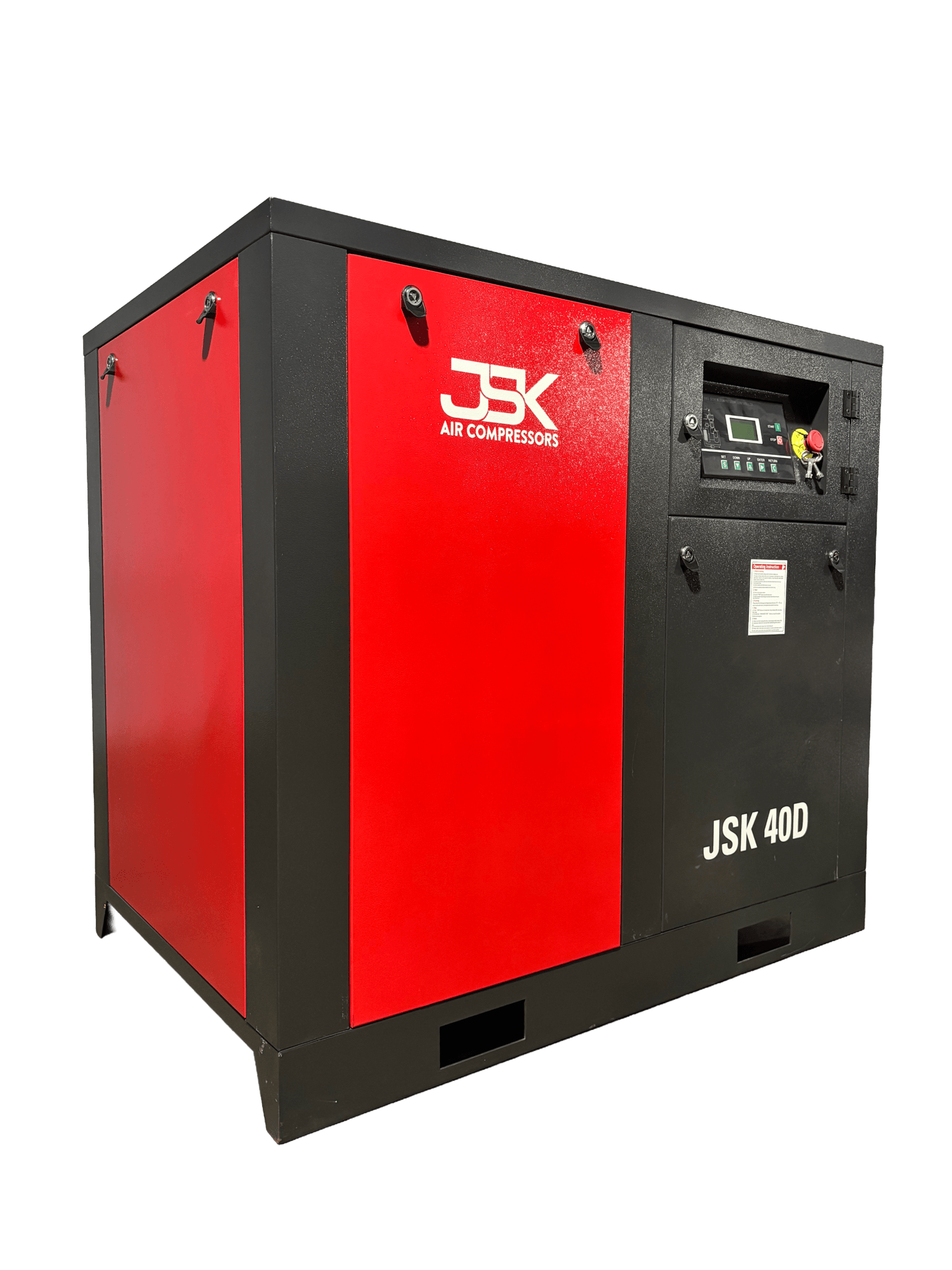

| JSK 40D | 30 | 2900 | 183.66 158.94 |
178.00 134.21 |
5.20/0.7 4.50/1.0 |
5.03/0.8 3.80/1.3 |
63±2 | 1500X1000X1330 | 620 | G1 1.5" |

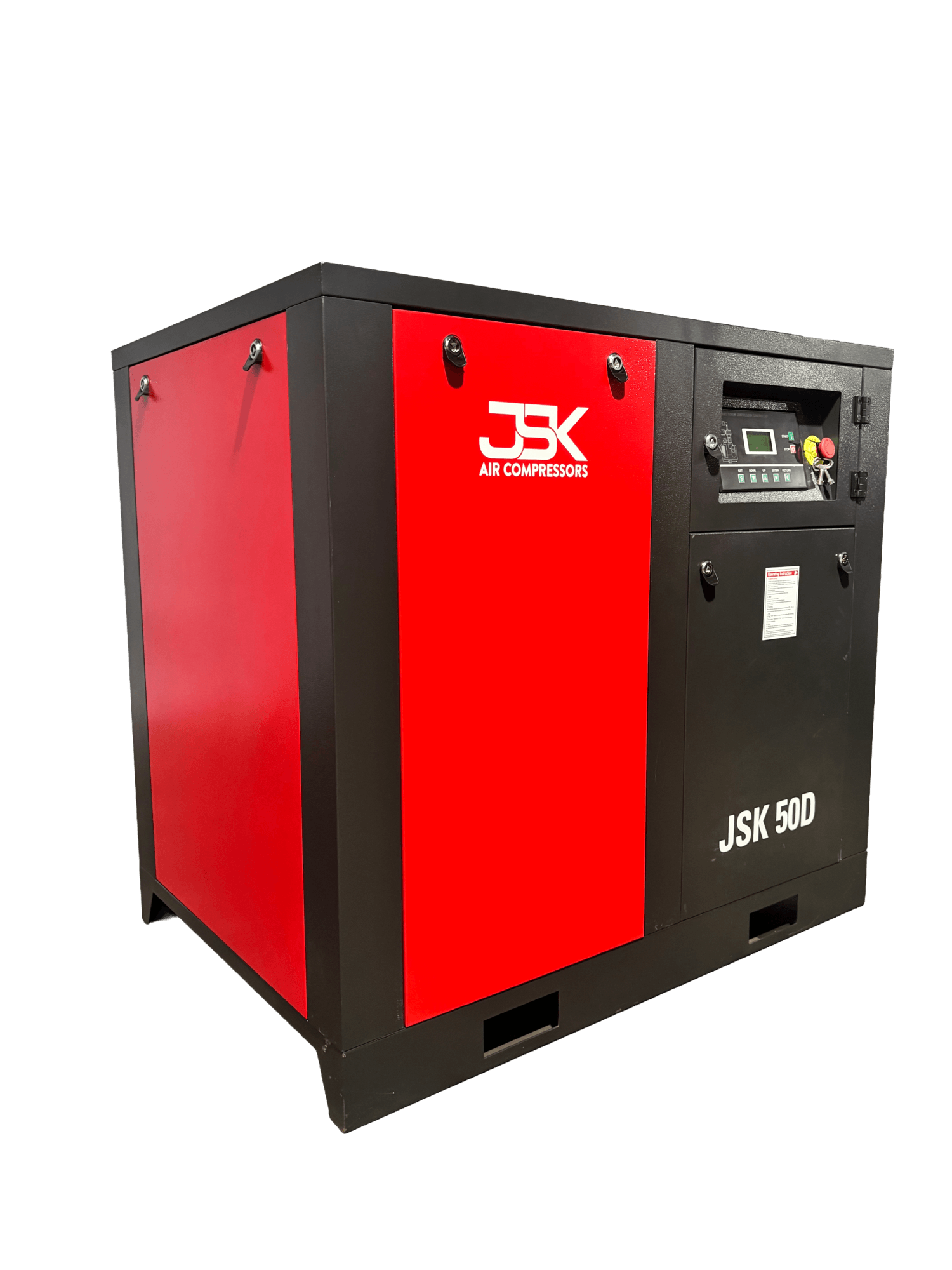

| JSK 50D | 37 | 2900 | 240.17 197.79 |
230.00 173.06 |
6.80/0.7 5.60/1.0 |
6.51/0.8 4.90/1.3 |
63±2 | 1500X1000X1330 | 630 | G1 1.5" |
| JSK 60D | 45 | 2900 | 282.56 247.24 |
276.00 204.85 |
8.00/0.7 7.00/1.0 |
7.81/0.8 5.80/1.3 |
68±2 | 1500X1000X1380 | 825 | G1 1.5" |
| JSK 75D | 55 | 2900 | 381.45 317.88 |
356.73 300.22 |
10.80/0.7 9.00/1.0 |
10.10/0.8 8.50/1.3 |
68±2 | 2045X1250X1705 | 1250 | G2" |
| JSK 100D | 75 | 2900 | 480.35 409.71 |
469.75 353.20 |
13.60/0.7 11.60/1.0 |
13.30/0.8 10.00/1.3 |
68±2 | 2045X1250X1705 | 1450 | G2" |
| JSK 120D | 90 | 2900 | 582.78 515.67 |
547.46 434.43 |
16.50/0.7 14.60/1.0 |
15.50/0.8 12.30/1.3 |
68±2 | 2340X1480X1820 | 1820 | DN50 |
| JSK 150D | 110 | 2900 | 759.38 618.10 |
724.06 572.18 |
21.50/0.7 17.50/1.0 |
20.50/0.8 16.20/1.3 |
68±2 | 2568X1620X1985 | 1970 | DN65 |
