3 To 15 HP 100% Oil-Free Clean Air

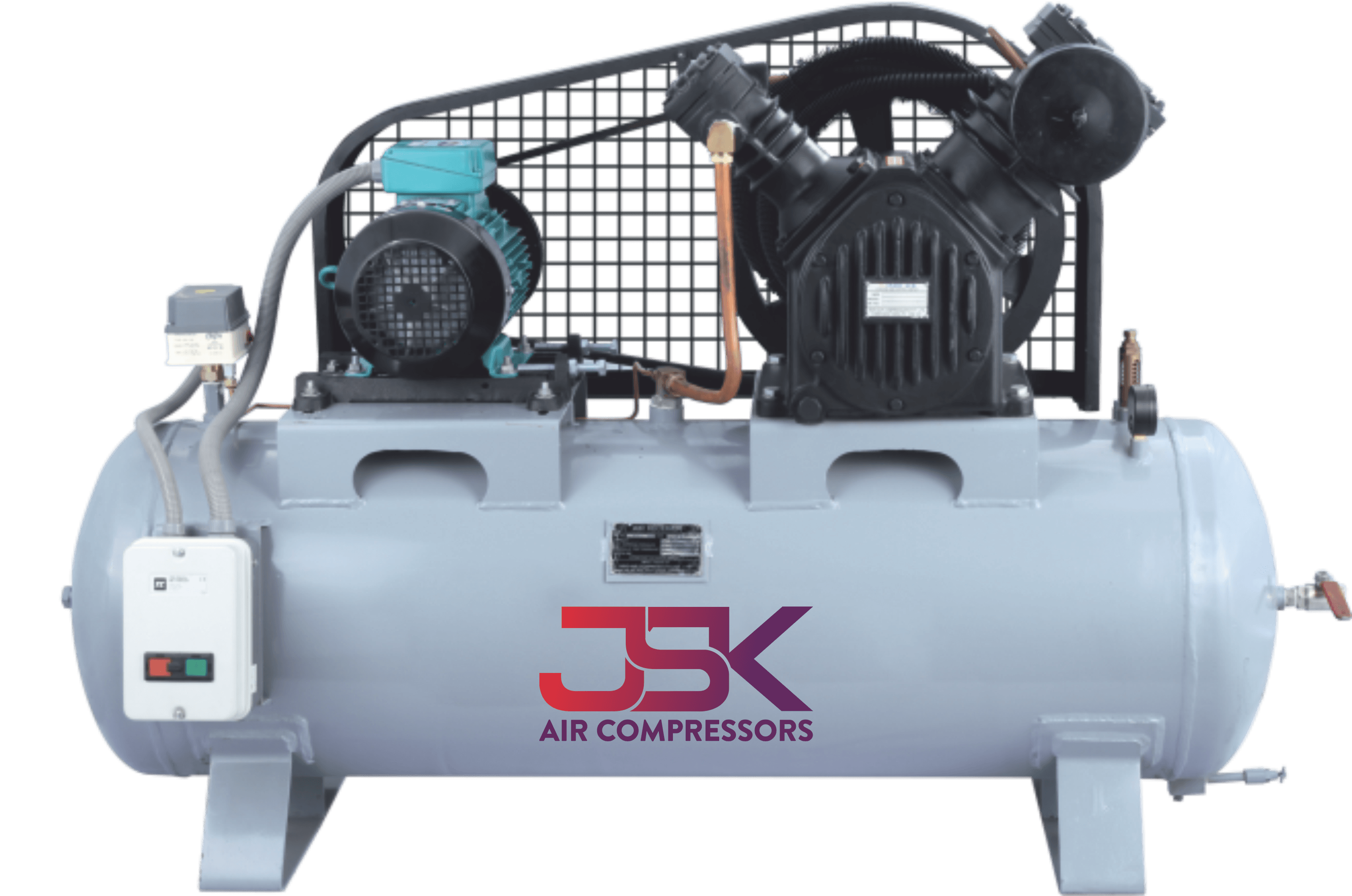

Two-Stage Oil-Free Non-Lubricated Air Compressor
Specially designed for industries where air purity is critical, JSK Two-Stage Oil-Free Air Compressors (3 HP to 15 HP) deliver 100% oil-free, clean compressed air without any risk of contamination. Engineered with self-lubricating high-grade PTFE piston rings, heat-resistant cylinder coatings, and advanced intercooling loops, these units run smooth and cool even during continuous factory duty. It’s the perfect low-maintenance solution for pharmaceuticals, food & beverage processing, medical labs, and sensitive electronics manufacturing.
Quick Specifications Overview
Power Range
3 HP to 15 HP
Working Pressure
7.73 to 10.00 kg/cm² (110-142 PSI)
Cylinder Material
100% Heavy-Duty Cast Iron
Applications
Pharma, Food Processing, Labs & Printing
Technical Specifications
| Model | Motor | No. Of CYL. | RPM | Receiver | Max. Pressure | Piston DISPL | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | CFT. | LTRS. | PSIG | KG/CM2 | CFM | M3/M | LTR/MIN | |||
| JSK 15 NL | 0.5 | 0.38 | 1 | 400 | 1.25 | 35 | 110 | 7.73 | 3.35 | 0.095 | 95 |
| JSK 20 NL | 1.0 | 0.75 | 1 | 650 | 2.50 | 70 | 125 | 8.78 | 5.45 | 0.154 | 154 |
| JSK 30 NL | 2.0 | 1.50 | 1 | 800 | 2.50 | 70 | 125 | 8.78 | 9.00 | 0.255 | 255 |
| JSK 40 NL | 3.0 | 2.20 | 2 | 660 | 7.95 | 225 | 142 | 10.00 | 13.20 | 0.374 | 374 |
| JSK 40 NL | 5.0 | 3.70 | 2 | 865 | 7.95 | 225 | 142 | 10.00 | 17.32 | 0.490 | 490 |
| JSK 60 NL | 5.0 | 3.70 | 2 | 500 | 8.83 | 250 | 142 | 10.00 | 19.90 | 0.564 | 504 |
| JSK 60 NL | 7.5 | 5.50 | 2 | 660 | 8.83 | 250 | 142 | 10.00 | 26.23 | 0.743 | 743 |
| JSK 110 NL | 10.0 | 7.50 | 2 | 725 | 10.60 | 300 | 142 | 10.00 | 40.00 | 1.133 | 1133 |
| JSK 110 NL | 12.5 | 9.30 | 2 | 800 | 10.60 | 300 | 142 | 10.00 | 44.00 | 1.246 | 1246 |
| JSK 110 NL | 15.0 | 11.00 | 2 | 900 | 10.60 | 300 | 142 | 10.00 | 49.50 | 1.402 | 1402 |
