3 To 30 HP High-Pressure Performance

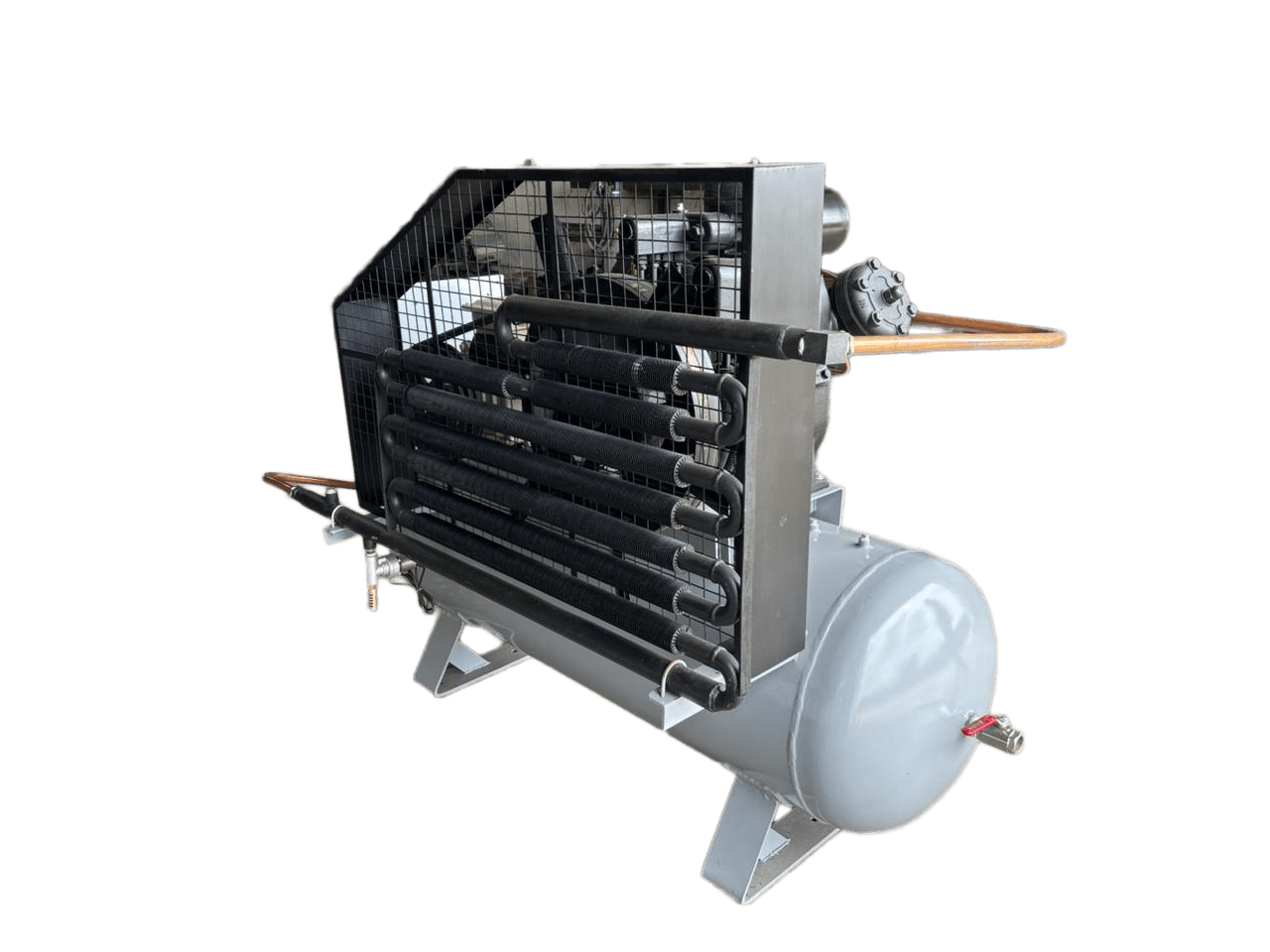

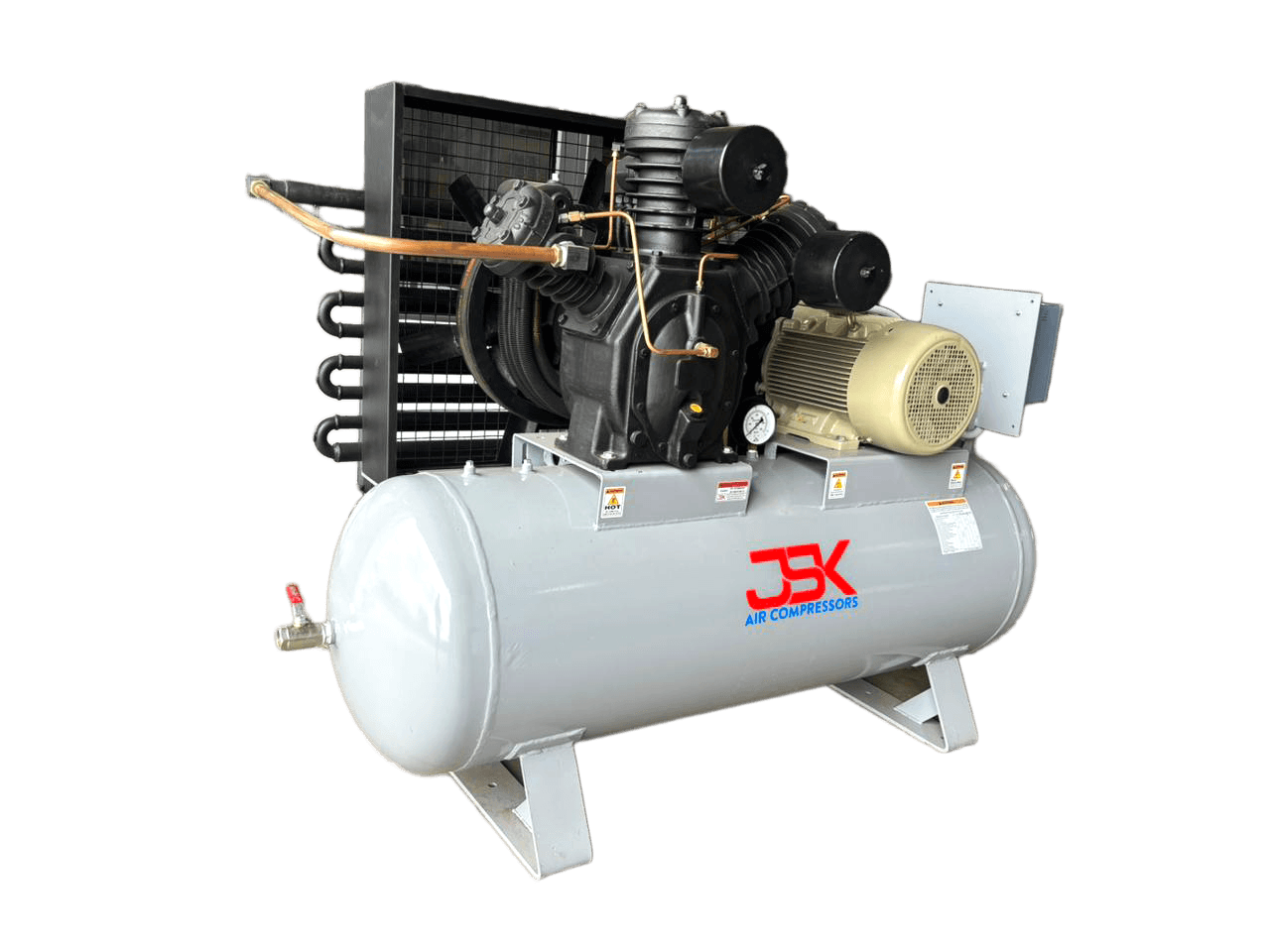

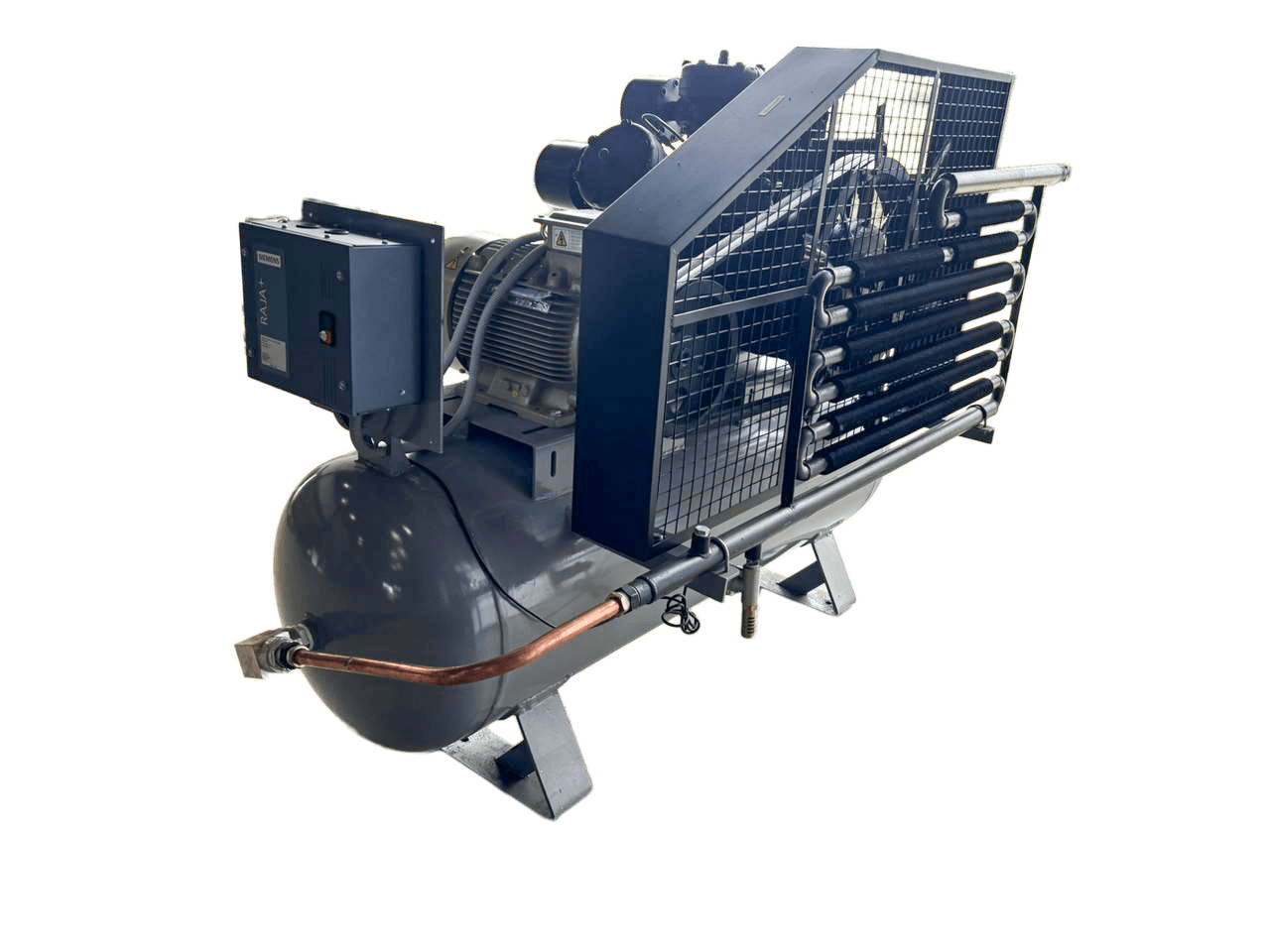

RReciprocating Multi-Stage High Pressure Air Compressor
Built for tough industrial jobs that need extra power, JSK Multi-Stage High Pressure Air Compressors (3 HP to 30 HP) deliver smooth, high-pressure air without stopping. With heavy-duty cast iron cylinders and advanced cooling pipes between stages, they handle heat effortlessly and run smoothly for years. It's the ideal, low-maintenance choice for PET blowing, bottle plants, and high-pressure testing lines.
Quick Specifications Overview
Power Range
3 HP to 30 HP
Working Pressure
26.36 to 70.30 kg/cm² (375–1000 PSI)
Cylinder Material
100% Heavy-Duty Cast Iron
Applications
PET Blowing, Valve Testing & High-Pressure Lines
Technical Specifications
| Model | Motor | No. Of CYL. | RPM | Receiver | Max. Pressure | Piston DISPL | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | CFT. | LTRS. | PSIG | KG/CM2 | CFM | M3/M | LTR/MIN | |||
| JSK 271 | 3.0 | 2.20 | 2 | 675 | 5.30 | 150 | 500 | 35.15 | 7.60 | 0.210 | 210 |
| JSK 47T2 | 7.5 | 5.50 | 2 | 530 | 10.60 | 300 | 500 | 35.15 | 24.00 | 0.680 | 680 |
| JSK 47T2 | 10.0 | 7.50 | 2 | 710 | 10.60 | 300 | 500 | 35.15 | 32.25 | 0.920 | 920 |
| JSK 47T2 | 12.50 | 9.30 | 2 | 800 | 10.60 | 300 | 500 | 35.15 | 36.36 | 1.030 | 1030 |
| JSK 55T2 | 15.0 | 11.00 | 3 | 760 | 17.66 | 500 | 500 | 35.15 | 41.80 | 1.180 | 1180 |
| JSK 55T2 | 15.0 | 11.00 | 3 | 650 | 17.66 | 500 | 1000 | 70.30 | 35.75 | 1.010 | 1010 |
| JSK 55T2 | 20.0 | 15.00 | 3 | 900 | 17.66 | 500 | 500 | 35.15 | 49.50 | 1.400 | 1400 |
| JSK 55T2 | 20.0 | 15.00 | 3 | 900 | 17.66 | 500 | 600 | 42.18 | 49.50 | 1.400 | 1400 |
| JSK 55T2 | 20.0 | 15.00 | 3 | 900 | 17.66 | 500 | 800 | 56.25 | 49.50 | 1.400 | 1400 |
| JSK 55T2 | 20.0 | 15.00 | 3 | 875 | 17.66 | 500 | 1000 | 70.30 | 48.00 | 1.360 | 1360 |
| JSK 55T2 TWIN | 20+20 | 15+15 | 3+3 | 900 | 17.66 | 500 | 500 | 35.15 | 99.00 | 2.800 | 2800 |
| JSK 515T2 | 15.0 | 11.00 | 3 | 600 | 17.66 | 500 | 375 | 26.36 | 55.00 | 1.560 | 1560 |
| JSK 515T2 | 20.0 | 15.00 | 3 | 750 | 17.66 | 500 | 375 | 26.36 | 68.00 | 1.930 | 1930 |
| JSK 515T2 | 25.0 | 18.00 | 3 | 900 | 17.66 | 500 | 375 | 26.36 | 81.80 | 2.310 | 2310 |
| JSK 515T2 TWIN | 20+20 | 15+15 | 3+3 | 750 | 117.66 | 500 | 375 | 26.36 | 136.00 | 3.860 | 3860 |
| JSK 515TK | 20.0 | 15.00 | 3 | 650 | 17.66 | 500 | 425 | 30.00 | 68.00 | 1.926 | 1926 |
| JSK 515TK | 25.0 | 18.00 | 3 | 800 | 17.66 | 500 | 425 | 30.00 | 85.00 | 2.407 | 2407 |
