5 To 10 HP Dry & Oil-Free Vacuum

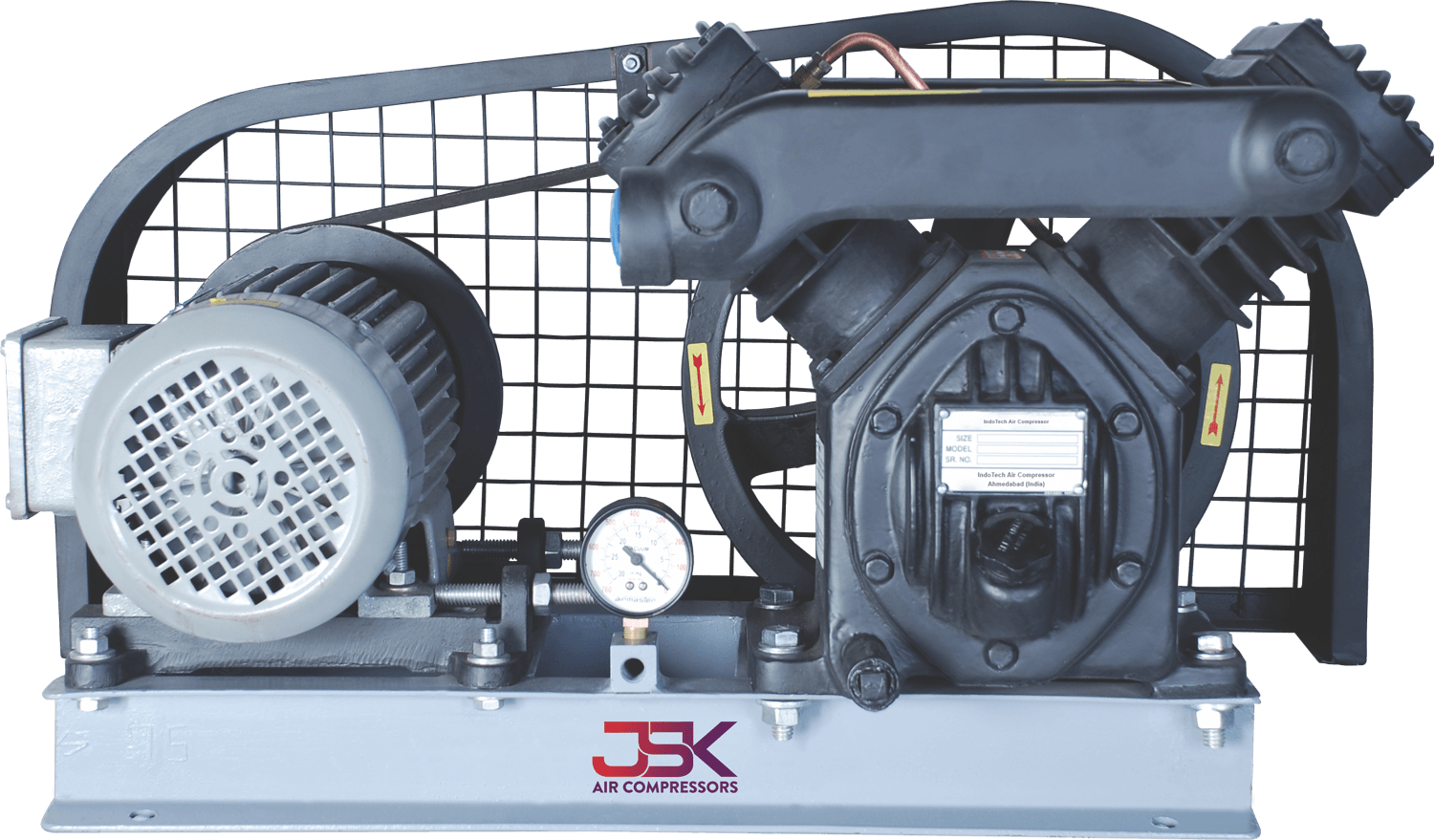

Reciprocating Single & Two-Stage Dry Vacuum Pump
Engineered for processes where zero oil contamination is mandatory, JSK Reciprocating Dry Vacuum Pumps (5 HP to 10 HP) deliver consistent, high-grade vacuum efficiency without using oil in the compression chamber. Available in single and two-stage setups, they feature self-lubricating piston rings, heavy-duty cast iron construction, and optimized heat-dissipating cooling fins. It's an ideal, eco-friendly solution for pharmaceutical drying, chemical distillation, vacuum filtration, paper handling, and food packaging plants.
Quick Specifications Overview
Power Range
5 HP to 10 HP
Vacuum Inch
29 - 29.6
RPM
750 - 1000
Applications
Pharma Drying, Distillation & Packaging
Technical Specifications
| Model | Motor | Vacuum Inch | RPM | WGT. KG. | LEN MM | WDT. MM | Height MM | Piston Displ | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | CFM | M3/M | LTR/MIN | |||||||
| JSK V275 | 2.0 | 1.50 | 29.0 | 960 | 84 | 740 | 406 | 432 | 21.60 | 0.610 | 610 |
| JSK V275T | 2.0 | 1.50 | 29.6 | 960 | 84 | 740 | 406 | 432 | 10.80 | 0.300 | 300 |
| JSK V284 | 2.0 | 1.50 | 29.0 | 866 | 145 | 1042 | 512 | 512 | 34.60 | 0.980 | 980 |
| JSK V284T | 2.0 | 21.50 | 29.6 | 866 | 145 | 1042 | 512 | 512 | 17.30 | 0.490 | 490 |
| JSK V295 | 5.0 | 3.70 | 29.0 | 750 | 194 | 1067 | 585 | 585 | 59.65 | 1.700 | 1700 |
| JSK V295T | 5.0 | 3.70 | 29.6 | 750 | 194 | 1067 | 585 | 585 | 29.82 | 0.850 | 850 |
| JSK V47 | 7.5 | 5.50 | 29.0 | 1000 | 300 | 1347 | 559 | 740 | 110.00 | 3.110 | 3110 |
| JSK V47T | 7.5 | 5.50 | 29.6 | 1000 | 300 | 1347 | 559 | 740 | 55.00 | 1.560 | 1560 |
| JSK V55 | 10.0 | 7.50 | 29.0 | 900 | 398 | 1372 | 813 | 839 | 148.50 | 4.200 | 4200 |
| JSK V55T | 10.0 | 7.50 | 29.6 | 900 | 398 | 1372 | 813 | 839 | 99.00 | 2.800 | 2800 |
